Mechanical Systems and Cable Management in South Wales
Choose wide-ranging cable management solutions for all types of mechanical systems in South Wales and the surrounding areas. Our Cwmbran-based team provide high-quality equipment and products for all your needs, including containment for cables, ducting, and pipework. Get in touch with VME Distributors to explore our selection of mechanical products.
Products in Stock
Our wide range of mechanical equipment and products includes:
Cable Basket
Cable Tray
Trunking
Cable Ladder
Unistrut
Ventilations
Support Systems
Accessories
H-Frame Kits
The H-Frame Kit is a quick and easy solution to support all cable management, ducting, and pipework. Supplied in box form, they are designed to use the UNISTRUT channel, which is supplied separately. As a module, our manufacturers can fabricate the H Frames in-house to speed up the process of installation on-site.
Specifications
- High-Density Polyethylene (HDPE)
- Designed to Fit UNISTRUT Channel (Not Supplied)
- No Penetration of Waterproof Roof Membrane
- Anti-Vibration Pads Pre-Attached to Feet
- Off-Site Cutting and Delivering Service Available
- Available in 305mm & 500mm
- S.W.L for R305mm – 350Kg
- S.W.L for R500mm – 500Kg
Product Information
| SF3305 | 305 | 4.1 | 350 |
| SF3500 | 500 | 10 | 500 |
SFR Range
Typical Application
Ideal for smaller outdoor condensing units or air source heat pump installations, the six feet of the standard SRF range provide a practical and versatile support solution for pipework and cable trays.
The feet have a 41mm x 21mm 'bonded' in channel recessed into the top face, allowing you to use standard strut fixings to secure units. StrutFoot’s SFR range is made from recycled SBR rubber, which is not only eco-friendly but also absorbs noise and vibrations, making it the perfect product for roof or ground-level installation.
Technical Information
| SF4025 | SFR250 | 250 | 180 | 95 | 160 |
| SF4040 | SFR400 | 400 | 180 | 95 | 240 |
| SF4060 | SFR600 | 600 | 180 | 95 | 450 |
| SF4010 | SFR1000 | 1000 | 180 | 95 | 645 |
| SF4525 | SFR250Low | 250 | 130 | 50 | 160 |
| SF4540 | SFR400Low | 400 | 130 | 50 | 240 |
Marshall-Tufflex is the UK’s leading manufacturer and supplier of cable management solutions for commercial, industrial, healthcare, education, and domestic markets. We deliver our top-quality cable management systems to a global market.
Mini/Maxi Trunking

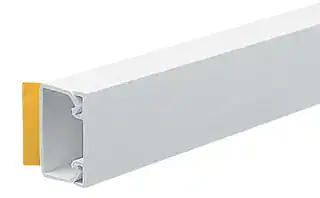

Mini-Trunking
Range
- MMT1, MMT2, MMT3, MMT4, MMT5, and MMT6
- MMT00SF, MMT0SF, MMT1SF, MMT2SF, MMT3SF, MMT4SF
- MMTH2, MMTH2SF, MMTH4, MMTH4SF
Key Features
- Square and Rectangular Profiles
- Tamperproof Covers
- Self-Fix and Punched Systems Available
- Full Range of Accessory Boxes and Fittings
- Standard or Sticky Back

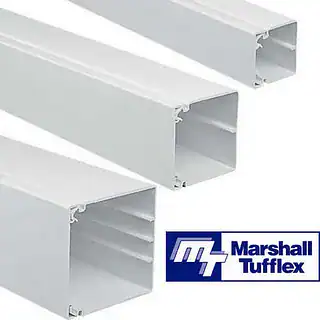

Maxi-Trunking
Range
- MTRS50, MTRS75/50, MTRS75, MTRS100/50, MTRS100, AND MTRS150
Key Features
- Square and Rectangular Profiles
- Tamperproof Covers
- Flush Fitting Accessories on Larger Sizes
- Fabricated Fittings and Slow Bends
- Can Be Sub-Divided to Carry Power and Data

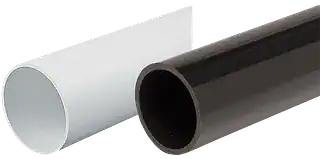

Heavy Conduit
Range
CR6, CR7 & CR8
Dimensions
20mm, 25mm, and 32mm
Key Features
- Heavy Gauge
- Range of Inspection Elbows, Bends, and Tees
- Range of Fittings
- Range of Round and Square Boxes
- Operating Temperature -5°C to +60°C
- Non-Flame Propagating to BS EN 61386-1
- High-Impact Resistance to -5°C Heavy Gauge
- Requirements of BS EN 61386-1

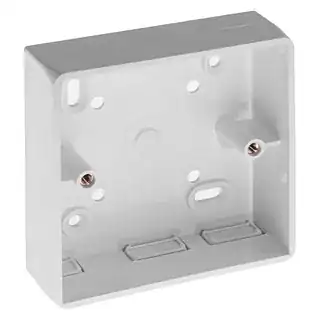

Surface Boxes
Range
MSSB26WH, MSSB28WH, MSSB93WH, MSSB94WH, MSSB91WH, MSSB92WH, MSSB40WH, MSSB41WH, MSSB41KWH, MSSB40KWH, MSSB17W, MSSB23WH, MSSB23KW & MSSB17KWH
Key Features
- Optional Square or Round Corners
- Universal KO Configuration (Mini and Conduit)
- Rear KO
- Suitable for Drilling or Cutting
- M3.5 Brass Inserts
- Suitable for 1 and 2 Gang Accessories
Wire Basket Systems

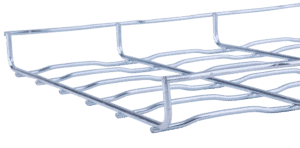

Standard Wire Basket:
- 35mm Height
- High Cable Capacity
- Maximum Cable Ventilation, and a High Level of Resistance to Cable Movement
- Ripple Design, Offering Greater Resistance to Flexing
- Greater Safe Working Load
- Excellent Aesthetic Finish – Standard Finish Electro-Zinc
- Assemble Using Our Range of Fast Fix Clip-on Couplers – No Bolts Required
Fast Coupling Wire Basket:
- Two Heights Available – 65mm and 105mm
- Integral Couplers for Quick and Easy Connection in Just Two Steps
- Couplers Positioned for Guiding a Fast and Easy Assembly Process
- No Tools Required
- Reduced Installation Time and Labour Costs
- Strong, Lightweight, Electro-Zinc Finish
- Unique Rippled Wire Design Enhances Product Strength and Flex Resistance
Versatile Mechanical System Supplies
We provide cable management equipment and other tools for mechanical systems.
